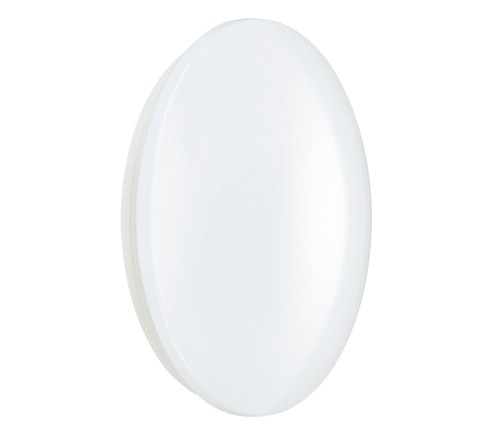

WL060V LED11S/840 PSU II WH

Specifications

General Information

Beam angle of light source	120 °
Light source color	840 neutral white
Light source replaceable	No
Number of gear units	1 unit
Driver/power unit/transformer	Power supply unit
Driver included	Yes
Optic type	Beam angle 120°
Luminaire light beam spread	120°
Control interface	–
Connection	Push-in connector 3-pole
Cable	–
Protection class IEC	Safety class II
Glow-wire test	Temperature 650 °C, duration 30 s
Flammability mark	–
CE mark	CE mark
ENEC mark	–
Warranty period	3 years

Remarks	*-Per Lighting Europe guidance paper “Evaluating performance of LED based luminaires – January 2018”: statistically there is no relevant difference in lumen maintenance between B50 and for example B10. Therefore, the median useful life (B50) value also represents the B10 value.
Constant light output	No
Number of products on MCB of 16 A type B	50
EU RoHS compliant	Yes

Operating and Electrical

Inrush time	0.043 ms
Power Factor (Min)	0.9

Controls and Dimming

Dimmable

Mechanical and Housing

Overall length	285 mm
Overall width	285 mm
Overall height	88 mm
Overall diameter	285 mm
Color	White
Dimensions (Height x Width x Depth)	88 x 285 x 285 mm (3.5 x 11.2 x 11.2 in)

Approval and Application

Ingress protection code

IP44 [ Wire-protected, splash-proof]

Mech. impact protection code

IK03 [ 0.3 J]

Initial Performance (IEC Compliant)

Initial luminous flux (system flux)	1100 lm
Luminous flux tolerance	+/-10%
Initial LED luminaire efficacy	90 lm/W
Init. Corr. Color Temperature	4000 K

Init. Color Rendering Index	>80
Initial chromaticity	(0.38, 0.38) SDCM ≤5
Initial input power	12 W
Power consumption tolerance	+/-10%

Over Time Performance (IEC Compliant)

Control gear failure rate at median useful life 50000 h

2.24 %

Lumen maintenance at median useful life* 50000 h

L70

Application Conditions

Ambient temperature range	-20 to +40 °C
Performance ambient temperature Tq	25 °C

Maximum dim level	Not applicable
Suitable for random switching	Not applicable
