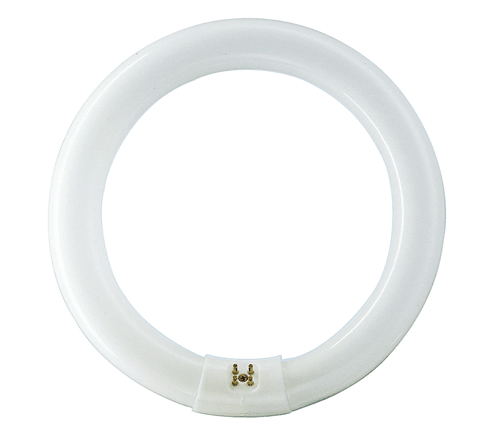

TL-E 40W/865 1CT/12

Specifications

General information

Cap-Base	G10Q  [ G10q]
Life to 50% Failures (Nom)	13000 h
LSF 2000 h Rated	98 %
LSF 4000 h Rated	77 %

LSF 6000 h Rated	60 %
LSF 8000 h Rated	45 %
Flux measurement reference	Sphere

Light technical

Color Code	865  [ CCT of 6500K]
Luminous Flux (Nom)	3070 lm
Luminous Flux (Rated) (Nom)	3070 lm
Color Designation	Cool Daylight
Chromaticity Coordinate X (Nom)	0.313
Chromaticity Coordinate Y (Nom)	0.337
Correlated Color Temperature (Nom)	6500 K

Luminous Efficacy (rated) (Nom)	78 lm/W
Color Rendering Index (Nom)	80
LLMF 2000 h Rated	89 %
LLMF 4000 h Rated	84 %
LLMF 6000 h Rated	81 %
LLMF 8000 h Rated	80 %

Operating and electrical

Power (Nom)	40.8 W
Lamp Current (Nom)	0.420 A

Voltage (Nom)

110 V

Temperature

Design Temperature (Nom)

25 °C

Controls and dimming

Dimmable

Yes

Mechanical and housing

Bulb Shape

C-T9  [ C-T9 29 mm]

Approval and application

Energy Efficiency Class	G
Mercury (Hg) Content (Max)	8 mg
Mercury (Hg) Content (Nom)	8 mg

Energy Consumption kWh/1000 h	41 kWh
EPREL Registration Number	423513

Product data

Full product code	872790084057500
Order product name	TL-E 40W/865 1CT/12
EAN/UPC – Product	8727900840575
Order code	928027486570
Numerator – Quantity Per Pack	1

Numerator – Packs per outer box	12
Material Nr. (12NC)	928027486570
Net Weight (Piece)	0.250 kg
ILCOS Code	FSC-40/65/1B-E-G10q-29/400
