RC065B LED34S/865 PSU W60L60 NOC

Compare
Categories: , Tags: , , , , , , Product Brand:

Specifications

General Information
Beam angle of light source
– °
Light source color
840 neutral white
Light source replaceable
No
Number of gear units
1 unit
Driver/power unit/transformer
Power supply unit
Driver included
Yes
Optic type
Beam angle 120°
Luminaire light beam spread
120°
Control interface
Connection
Connection unit 2-pole
Cable
Protection class IEC
Safety class II
Glow-wire test
Temperature 650 °C, duration 30 s
Flammability mark
CE mark
CE mark
ENEC mark
Warranty period
3 years
Constant light output
No
Number of products on MCB of 16 A type B
35
Photobiological risk
Photobiological risk group 0 @ 200mm to EN62471
EU RoHS compliant
No
Service tag
No
Unified glare rating CEN
22
Light Technical
Saturated Red (R9)
<50
Operating and Electrical
Input Voltage
220 to 240 V
Input Frequency
50 or 60 Hz
Initial CLO power consumption
– W
Average CLO power consumption
– W
Inrush current
15 A
Inrush time
0.2 ms
Power Factor (Min)
0.9
Controls and Dimming
Dimmable
No
Mechanical and Housing
Housing Material
Steel
Reflector material
Acrylate
Optic material
Polystyrene
Optical cover/lens material
Polystyrene
Fixation material
Optical cover/lens finish
Opal

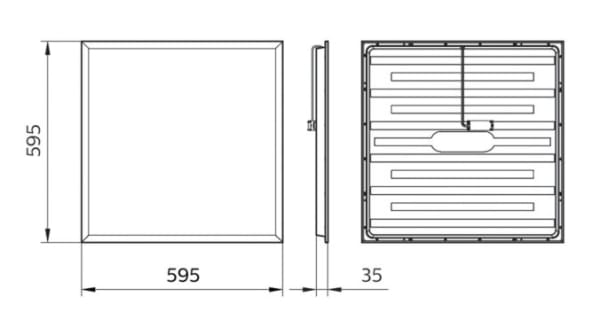

Overall length
595 mm
Overall width
595 mm
Overall height
35 mm
Color
White
Dimensions (Height x Width x Depth)
35 x 595 x 595 mm (1.4 x 23.4 x 23.4 in)
Approval and Application
Ingress protection code
IP20  [ Finger-protected]
Mech. impact protection code
IK02  [ 0.2 J standard]
Initial Performance (IEC Compliant)
Initial luminous flux (system flux)
3400 lm
Luminous flux tolerance
+/-10%
Initial LED luminaire efficacy
100 lm/W
Init. Corr. Color Temperature
6500 K
Init. Color Rendering Index
>80
Initial chromaticity
(0.3123, 0.3282) SDCM≤5
Initial input power
34 W
Power consumption tolerance
+/-10%
Over Time Performance (IEC Compliant)
Control gear failure rate at median useful life 50000 h
7.5 %
Lumen maintenance at median useful life* 35000 h
Lumen maintenance at median useful life* 50000 h
L70
Lumen maintenance at median useful life* 75000 h
Lumen maintenance at median useful life* 100000 h
Application Conditions
Ambient temperature range
+10 to +35 °C
Performance ambient temperature Tq
25 °C
Maximum dim level
Not applicable
Suitable for random switching
Not applicable
Product Data
Full product code
871016336206999
Order product name
RC065B LED34S/865 PSU W60L60 NOC
EAN/UPC – Product
8710163362069
Order code
911401885180
Numerator – Quantity Per Pack
1
Numerator – Packs per outer box
4
Material Nr. (12NC)
911401885180
Net Weight (Piece)
1.900 kg
