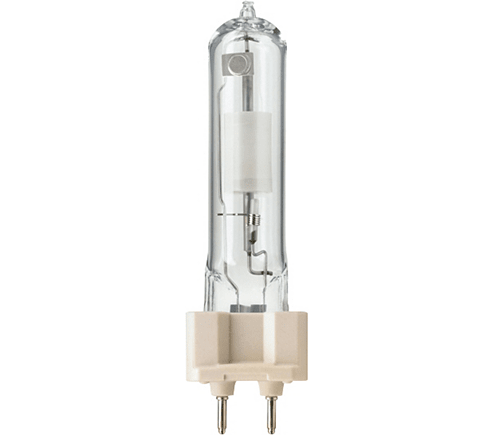

MASTERColour CDM-T 150W/942 G12 1CT

Compare
Categories: , , Tags: , , , , , Product Brand:

Specifications

General information
Cap-Base
G12  [ G12]
Operating Position
UNIVERSAL  [ Any or Universal (U)]
Life to 5% Failures (Nom)
9000 h
Life To 10% Failures (Nom)
10000 h
Life to 20% Failures (Nom)
11000 h
Life to 50% Failures (Nom)
12000 h
ANSI Code HID
C142/E
Flux measurement reference
Sphere
Light technical
Color Code
942  [ CCT of 4200K]
Luminous Flux (Nom)
12100 lm
Luminous Flux (Rated) (Min)
10900 lm
Luminous Flux (Rated) (Nom)
12100 lm
Color Designation
Cool White (CW)
Lumen Maintenance 10000 h (Nom)
70 %
Lumen Maintenance 2000 h (Min)
75 %
Lumen Maintenance 2000 h (Nom)
85 %
Lumen Maintenance 5000 h (Min)
70 %
Lumen Maintenance 5000 h (Nom)
80 %
Chromaticity Coordinate X (Nom)
0.371
Chromaticity Coordinate Y (Nom)
0.366
Correlated Color Temperature (Nom)
4200 K
Luminous Efficacy (rated) (Nom)
82 lm/W
Color Rendering Index (Nom)
96
Operating and electrical
Power (Nom)
150.1 W
Lamp Current Run-Up (Max)
2.5 A
Lamp Current (EM) (Nom)
1.9 A
Ignition Supply Voltage (Max)
198 V
Ignition Peak Voltage (Max)
5000 V
Ignition Supply Voltage (Min)
198 V
Ignition Peak Voltage (Min)
3500 V
Re-Ignition Time (Min) (Max)
15 min
Ignition Time (Max)
30 s
Voltage (Max)
98 V
Voltage (Min)
82 V
Voltage (Nom)
90 V
Controls and dimming
Dimmable
No
Run-Up Time 90% (Max)
3 min
Mechanical and housing
Bulb Finish
Clear
Bulb Shape
T19  [ T 19mm]
Approval and application
Energy Efficiency Class
G
Mercury (Hg) Content (Max)
10.4 mg
Mercury (Hg) Content (Nom)
10.4 mg
Energy Consumption kWh/1000 h
151 kWh
EPREL Registration Number
473338
UV
Pet (Niosh) (Min)
8 h/500lx
Damage Factor D/fc (Max)
0.4

Luminaire design requirements

Bulb Temperature (Max)
650 °C
Cap-Base Temperature (Max)
280 °C
Pinch Temperature (Max)
350 °C

Product data

Full product code
871150020005115
Order product name
MASTERColour CDM-T 150W/942 G12 1CT
EAN/UPC – Product
8711500200051
Order code
928084605131
Numerator – Quantity Per Pack
1
Numerator – Packs per outer box
12
Material Nr. (12NC)
928084605131
Net Weight (Piece)
0.033 kg
ILCOS Code
MT/UB-150/942-H-G12-21/100
