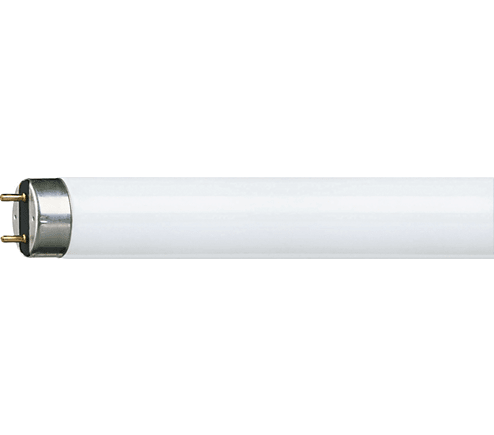

MASTER TL-D Super 80 36W/865 1SL/25

Specifications

General Information

Cap-Base	G13  [ Medium Bi-Pin Fluorescent]
Life To 10% Failures (Nom)	12000 h
Life to 50% Failures (Nom)	15000 h
Life to 50% Failures Preheat (Nom)	20000 h
LSF 2000 h Rated	99 %
LSF 4000 h Rated	99 %

LSF 6000 h Rated	99 %
LSF 8000 h Rated	99 %
LSF 12000 h Rated	89 %
LSF 16000 h Rated	33 %
LSF 20000 h Rated	2 %
Flux measurement reference	Sphere

Light Technical

Color Code	865  [ CCT of 6500K]
Luminous Flux (Nom)	3200 lm
Luminous Flux (Rated) (Nom)	3250 lm
Color Designation	Cool Daylight
Chromaticity Coordinate X (Nom)	0.313
Chromaticity Coordinate Y (Nom)	0.337
Correlated Color Temperature (Nom)	6500 K
Luminous Efficacy (rated) (Nom)	84 lm/W

Color Rendering Index (Nom)	80
LLMF 2000 h Rated	96 %
LLMF 4000 h Rated	95 %
LLMF 6000 h Rated	94 %
LLMF 8000 h Rated	93 %
LLMF 12000 h Rated	92 %
LLMF 16000 h Rated	91 %
LLMF 20000 h Rated	90 %

Operating and Electrical

Power (Nom)	36.8 W
Lamp Current (Nom)	0.440 A

Temperature

Design Temperature (Nom)

25 °C

Controls and Dimming

Dimmable

Yes

Mechanical and Housing

Bulb Shape

T8  [ 26 mm (T8)]

Approval and Application

Energy Efficiency Class	G
Mercury (Hg) Content (Max)	2 mg
Mercury (Hg) Content (Nom)	2.0 mg

Energy Consumption kWh/1000 h	37 kWh
EPREL Registration Number	423386

Product Data

Full product code	871150063207440
Order product name	MASTER TL-D Super 80 36W/865 1SL/25
EAN/UPC – Product	8711500632074
Order code	927921086544
Numerator – Quantity Per Pack	1

Numerator – Packs per outer box	25
Material Nr. (12NC)	927921086544
Net Weight (Piece)	135.000 g
ILCOS Code	FD-36/65/1B-E-G13
