General Information
| Cap-Base |
2G11 [ 2G11]
|
| Life To 10% Failures (Nom) |
10000 h
|
| Life to 50% Failures (Nom) |
15000 h
|
| Life to 50% Failures Preheat (Nom) |
20000 h
|
| System Description |
–
|
| LSF 2000 h Rated |
99 %
|
| LSF 4000 h Rated |
98 %
|
| LSF 6000 h Rated |
96 %
|
| LSF 8000 h Rated |
94 %
|
| LSF 12000 h Rated |
80 %
|
| LSF Preheat 2000 h Rated |
99 %
|
| LSF Preheat 4000 h Rated |
99 %
|
| LSF Preheat 6000 h Rated |
98 %
|
| LSF Preheat 8000 h Rated |
97 %
|
| LSF Preheat 16000 h Rated |
82 %
|
| LSF Preheat 20000 h Rated |
50 %
|
| Flux measurement reference |
Sphere
|
Light Technical
| Color Code |
840 [ CCT of 4000K]
|
| Luminous Flux (Nom) |
1200 lm
|
| Luminous Flux (Rated) (Nom) |
1200 lm
|
| Color Designation |
Cool White (CW)
|
| Chromaticity Coordinate X (Nom) |
0.38
|
| Chromaticity Coordinate Y (Nom) |
0.38
|
| Correlated Color Temperature (Nom) |
4000 K
|
| Luminous Efficacy (rated) (Nom) |
67 lm/W
|
| Color Rendering Index (Nom) |
80
|
| LLMF 2000 h Rated |
94 %
|
| LLMF 4000 h Rated |
93 %
|
| LLMF 6000 h Rated |
92 %
|
| LLMF 8000 h Rated |
91 %
|
| LLMF 12000 h Rated |
90 %
|
| LLMF 16000 h Rated |
90 %
|
| LLMF 20000 h Rated |
90 %
|
Operating and Electrical
| Power (Nom) |
18.0 W
|
| Lamp Current (Nom) |
0.375 A
|
Temperature
| Design Temperature (Nom) |
30 °C
|
Controls and Dimming
| Dimmable |
Yes
|
Mechanical and Housing
| Cap-Base Information |
4 Pins
|
Approval and Application
| Energy Efficiency Class |
G
|
| Mercury (Hg) Content (Max) |
2 mg
|
| Mercury (Hg) Content (Nom) |
2.0 mg
|
| Energy Consumption kWh/1000 h |
18 kWh
|
| EPREL Registration Number |
423263
|
Product Data
| Full product code |
871150070669040
|
| Order product name |

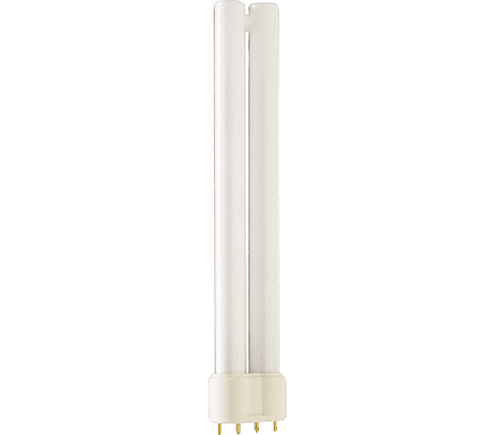

MASTER PL-L 18W/840/4P 1CT/25
|
| EAN/UPC – Product |
8711500706690
|
| Order code |
927903008470
|
| Numerator – Quantity Per Pack |
1
|
| Numerator – Packs per outer box |
25
|
| Material Nr. (12NC) |
927903008470
|
| Net Weight (Piece) |
60.900 g
|
| ILCOS Code |
FSD-18/40/1B-E-2G11
|
