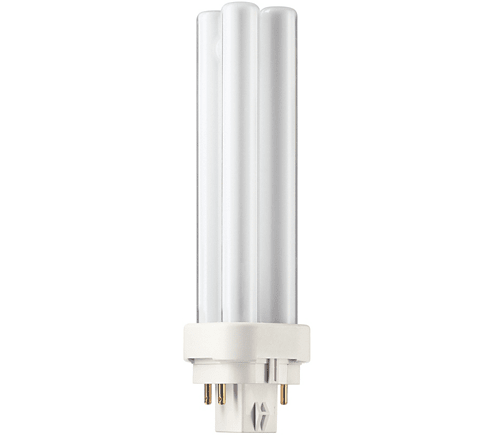

MASTER PL-C 13W/840/4P 1CT/5X10BOX

Specifications

General Information

Cap-Base	G24Q-1  [ G24q-1]
Life to 50% Failures Preheat (Nom)	13000 h
LSF Preheat 2000 h Rated	99 %
LSF Preheat 4000 h Rated	98 %

LSF Preheat 6000 h Rated	97 %
LSF Preheat 8000 h Rated	90 %
Flux measurement reference	Sphere

Light Technical

Color Code	840  [ CCT of 4000K]
Luminous Flux (Nom)	925 lm
Luminous Flux (Rated) (Nom)	925 lm
Color Designation	Cool White (CW)
Chromaticity Coordinate X (Nom)	0.38
Chromaticity Coordinate Y (Nom)	0.38
Correlated Color Temperature (Nom)	4000 K

Luminous Efficacy (rated) (Nom)	69 lm/W
Color Rendering Index (Nom)	80
LLMF 2000 h Rated	92 %
LLMF 4000 h Rated	87 %
LLMF 6000 h Rated	83 %
LLMF 8000 h Rated	81 %

Operating and Electrical

Power (Nom)	13.8 W
Lamp Current (Nom)	0.170 A

Temperature

Design Temperature (Nom)

28 °C

Controls and Dimming

Dimmable

Yes

Mechanical and Housing

Cap-Base Information

4 Pins

Approval and Application

Energy Efficiency Class	G
Mercury (Hg) Content (Max)	1.4 mg
Mercury (Hg) Content (Nom)	1.4 mg

Energy Consumption kWh/1000 h	14 kWh
EPREL Registration Number	423300

Product Data

Full product code	871150062332470
Order product name	MASTER PL-C 13W/840/4P 1CT/5X10BOX
EAN/UPC – Product	8711500623324
Order code	927907184040
Numerator – Quantity Per Pack	1

Numerator – Packs per outer box	50
Material Nr. (12NC)	927907184040
Net Weight (Piece)	49.900 g
ILCOS Code	FSQ-13/40/1B-E-G24q=1
