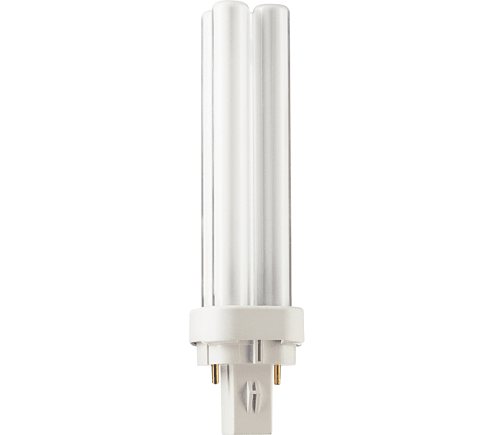

MASTER PL-C 13W/840/2P 1CT/5X10BOX

Specifications

General Information

Cap-Base	G24D-1  [ G24d-1]
Life To 10% Failures (Nom)	6500 h
Life to 50% Failures (Nom)	10000 h
LSF 2000 h Rated	99 %

LSF 4000 h Rated	98 %
LSF 6000 h Rated	92 %
LSF 8000 h Rated	78 %
Flux measurement reference	Sphere

Light Technical

Color Code	840  [ CCT of 4000K]
Luminous Flux (Nom)	925 lm
Luminous Flux (Rated) (Nom)	925 lm
Color Designation	Cool White (CW)
Chromaticity Coordinate X (Nom)	0.38
Chromaticity Coordinate Y (Nom)	0.38
Correlated Color Temperature (Nom)	4000 K

Luminous Efficacy (rated) (Nom)	69 lm/W
Color Rendering Index (Nom)	80
LLMF 2000 h Rated	92 %
LLMF 4000 h Rated	87 %
LLMF 6000 h Rated	83 %
LLMF 8000 h Rated	81 %

Operating and Electrical

Power (Nom)	13.8 W
Lamp Current (Nom)	0.170 A

Temperature

Design Temperature (Nom)

28 °C

Controls and Dimming

Dimmable

No

Mechanical and Housing

Cap-Base Information

2 Pins

Approval and Application

Energy Efficiency Class	G
Mercury (Hg) Content (Max)	1.4 mg
Mercury (Hg) Content (Nom)	1.4 mg

Energy Consumption kWh/1000 h	14 kWh
EPREL Registration Number	423280

Product Data

Full product code	871150062086670
Order product name	MASTER PL-C 13W/840/2P 1CT/5X10BOX
EAN/UPC – Product	8711500620866
Order code	927904884040
Numerator – Quantity Per Pack	1

Numerator – Packs per outer box	50
Material Nr. (12NC)	927904884040
Net Weight (Piece)	53.600 g
ILCOS Code	FSQ-13/40/1B-I-G24d=1
