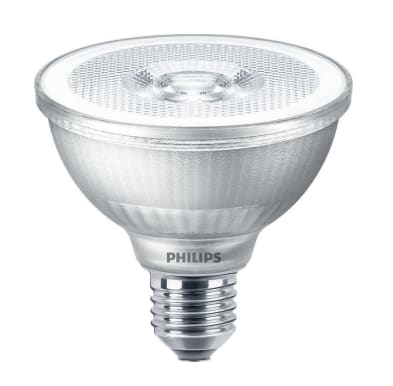

MAS LEDspot CLA D 9.5-75W 830 PAR30S 25D

Compare
Categories: , Tags: , , , , , , , Product Brand:

Product data
General Information
Cap-Base: E27 [ E27]
EU RoHS compliant: Yes
Nominal Lifetime (Nom): 25000 h
Switching Cycle: 25000X
Technical Type: 9.5-75W

Light Technical
Color Code: 830 [ CCT of 3000K]
Beam Angle: (Nom) 25 °
Luminous Flux (Nom): 760 lm
Luminous Intensity (Nom): 3500 cd
Color Designation: White (WH)
Correlated Color Temperature (Nom): 3000 K
Luminous Efficacy (rated) (Nom): 85.26 lm/W
Color Consistency: <6
Color Rendering Index (Nom): 80
LLMF At End Of Nominal Lifetime (Nom): 70 %
Luminous Flux in 90° Cone (Rated): 760 lm

Operating and Electrical
Input Frequency: 50 Hz
Power (Nom): 9.5 W
Lamp Current (Nom): 48 mA
Wattage Equivalent: 75 W
Starting Time (Nom): 0.5 s
Warm Up Time to 60% Light (Nom): 0.5 s
Power Factor (Nom): 0.85
Voltage (Nom): 220-240 V

Temperature
T-Case Maximum (Nom): 80 °C

Controls and Dimming
Dimmable: Yes

Approval and Application
Energy Efficiency Label (EEL): A+
Suitable For Accent Lighting: Yes
Energy Consumption kWh/1000 h: 10 kWh

Product Data
Full product code: 871869671390700
Order product name: MAS LEDspot CLA D 9.5-75W 830 PAR30S 25D
EAN/UPC – Product: 8718696713907
Order code: 929001342902
Numerator – Quantity Per Pack: 1
Numerator – Packs per outer box: 6
Material Nr. (12NC): 929001342902
Net Weight (Piece): 0.230 kg
