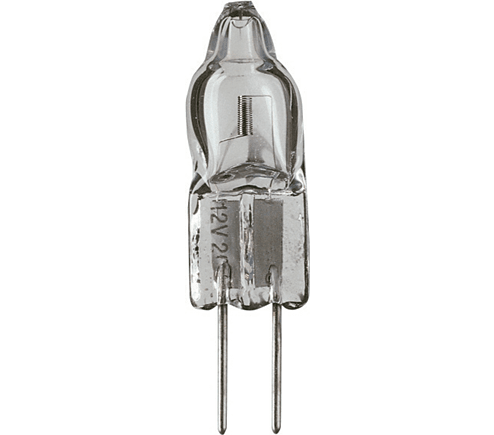

Caps 3000h 7W G4 12V CL 1CT/10x10F

Specifications

General Information

Cap-Base	G4  [ G4]
Operating Position	UNIVERSAL  [ Any or Universal (U)]
Nominal Lifetime (Nom)	3000 h

Switching Cycle	12000X
Rated Lifetime (Hours)	3000 h
Flux measurement reference	Sphere

Light Technical

Luminous Flux (Nom)	85 lm
Luminous Flux (Rated) (Nom)	86 lm
Chromaticity Coordinate X (Nom)	0.46
Chromaticity Coordinate Y (Nom)	0.411

Correlated Color Temperature (Nom)	2750 K
Luminous Efficacy (rated) (Nom)	12.3 lm/W
Color Rendering Index (Nom)	100

Operating and Electrical

Power (Nom)	7.1 W
Lamp Current (Nom)	0.58 A
Starting Time (Nom)	0.0 s

Warm Up Time to 60% Light (Nom)	instant full light s
Power Factor (Nom)	1
Voltage (Nom)	12 V

Controls and Dimming

Dimmable

Yes

Mechanical and Housing

Bulb Finish

Clear

Bulb Shape

T9  [ T 9mm (T9)]

Approval and Application

Energy Efficiency Class	G
Energy Consumption kWh/1000 h	8 kWh

EPREL Registration Number

423248

Luminaire Design Requirements

Bulb Temperature (Max)

600 °C

Pinch Temperature (Max)

350 °C

Product Data

Full product code	871869682786400
Order product name	Caps 3000h 7W G4 12V CL 1CT/10x10F
EAN/UPC – Product	8718696827864
Order code	925723217101

Numerator – Quantity Per Pack	1
Numerator – Packs per outer box	100
Material Nr. (12NC)	925723217101
Net Weight (Piece)	0.002 kg
