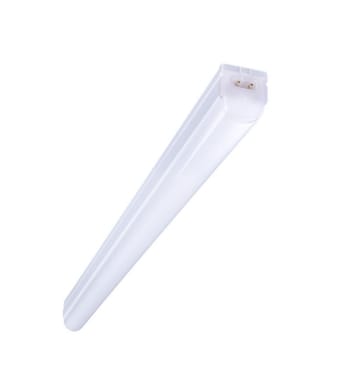

BN013C LED25S/840 L1500

Compare
Categories: , , Tags: , , , , , , Product Brand:

Product data
General Information
Beam angle of light source: – °
Light source color :840 neutral white
Cap-Base: G13 [ Medium Bi-Pin Fluorescent]
Light source replaceable: No
Number of gear units: 1 unit
Driver/power unit/transformer: Power supply unit
Driver included: Yes
Optic type: Very wide beam
Luminaire light beam spread: 154°
Control interface: –
Connection Push-in connector: 2-pole
Cable: –
Protection class IEC: Safety class II
Glow-wire test Temperature: 650 °C, duration 30 s
Flammability mark: For mounting on normally flammable surfaces
CE mark: CE mark
ENEC mark: –
Warranty period: 3 years
Constant light output: No
Number of products on MCB of 16 A type B: 10
EU RoHS compliant: Yes
Unified glare rating CEN: 26

Operating and Electrical
Input Voltage: 220 to 240 V
Input Frequency: 50 or 60 Hz
Initial CLO power consumption: – W
Average CLO power consumption: – W
Inrush current: 4.24 A
Inrush time: 0.045 ms
Power Factor (Min): 0.9

Controls and Dimming
Dimmable: No

Mechanical and Housing
Housing Material: Polycarbonate
Reflector material: Polycarbonate
Optic material: Polycarbonate
Optical cover/lens material: Polycarbonate
Fixation material: –
Optical cover/lens finish: Opal
Overall length: 1512 mm
Overall width: 30 mm
Overall height: 36.5 mm
Color: White
Dimensions (Height x Width x Depth): 37 x 30 x 1512 mm (1.4 x 1.2 x 59.5 in)

Approval and Application
Ingress protection code: IP20 [ Finger-protected]
Mech. impact protection code: IK02 [ 0.2 J standard]

Initial Performance (IEC Compliant)
Initial luminous flux (system flux): 2500 lm
Luminous flux tolerance +/-:10%
Initial LED luminaire efficacy: 100 lm/W
Init. Corr. Color Temperature: 4000 K
Init. Color Rendering Index: ≥80
Initial chromaticity: 0.3738, 0.3728, SDCM≤5
Initial input power: 24 W
Power consumption tolerance +/-:10%

Over Time Performance (IEC Compliant)
Control gear failure rate at median useful life 50000 h: 7.50 %
Lumen maintenance at median useful life* 50000 h: L65

Application Conditions
Ambient temperature range: -20 to +35 °C
Performance ambient temperature Tq: 25 °C
Maximum dim level: Not applicable
Suitable for random switching: Not applicable

Product Data
Full product code: 871016334960299
Order product name: BN013C LED25S/840 L1500
EAN/UPC – Product: 8710163349602
Order code: 911401836580
Numerator – Quantity Per Pack: 1
Numerator – Packs per outer box: 25
Material Nr. (12NC): 911401836580
Net Weight (Piece): 0.340 kg
