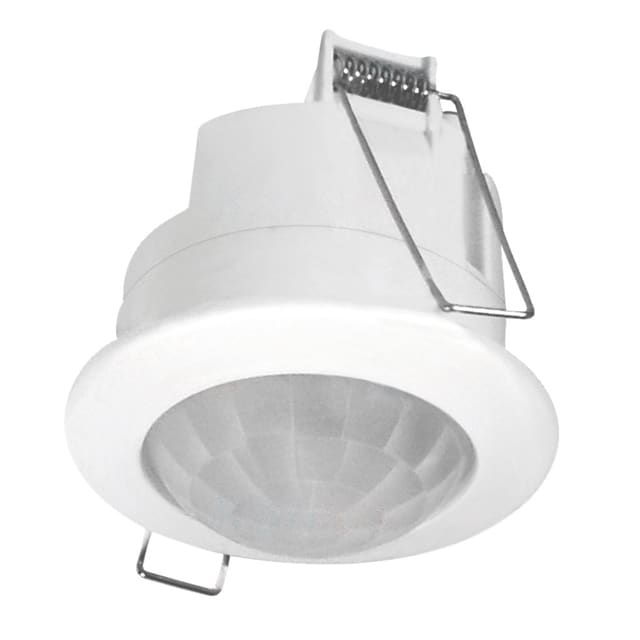

PIR Sensor recessed

Product information

  • casing: plastic
  • colour: white
  • maximum horizontal operation angle for movement sensor is 360°
  • maximum movement detection range is 5m
  • maximum verical operational angle for movement sensor is 120°
  • possibility of fitting lighting time control from 5s to 6min
  • resistive load is max 2000W, inductive load is max 600W
  • setting ambient illumination level at which the equipment operates

Technical parameters

220-240V supply Rated frequency 50Hz for building in vertical surface or from the bottom of solid surface clamp 3 x 0,75 mm2 protection against solid objects over 12mm applicable indoors II protection class permitted mounting on flamable regular surface 50 pcs per inner box weight 100g conformity with European standards
